  • This is a quick refresher on ECGs commonly seen in the ED. We have provided one-liner introductions to each, and the answers are below the ECG. For those looking for a challenge, cover up the answer and quiz yourself.

1. ECG – Tachyarrhythmias

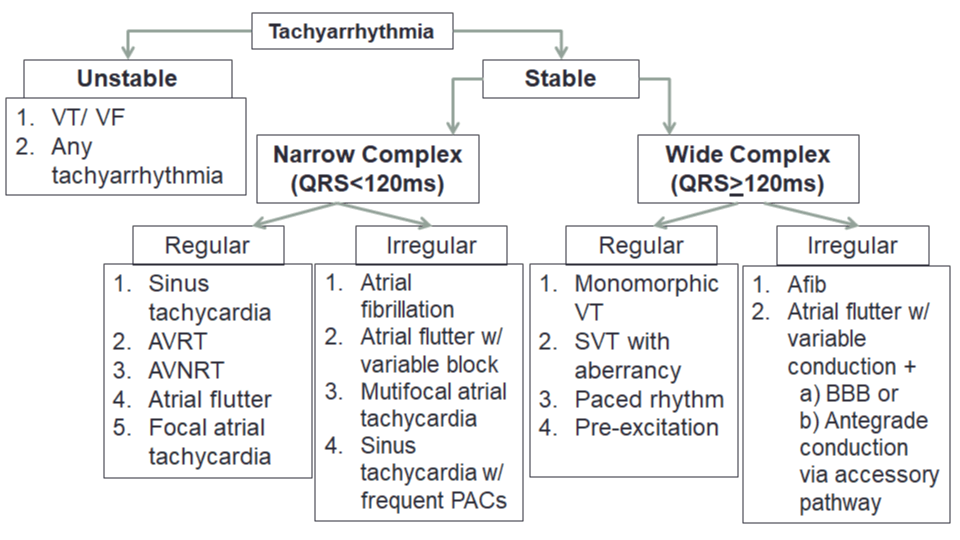

An approach to Tachyarrythmias

ECG Cases Questions – What is the ECG and your next step?

[bg_faq_start]

Case 1

25-year-old male. Feels very anxious watching the news. Very worried he is going to get COVID-19. The redeployed nurse from the pediatric ward apologizes profusely for the wandering baseline, but that is the best ECG they could get because the patient is very anxious.

[bg_faq_start]

Answer

Interpretation: Sinus Tachycardia
Key Features: HR>100 BPM, Normal P wave morphology (P wave upright in I and II)
What is your next step: Determine the underlying cause of tachycardia and treat the underlying cause.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 2

38-year-old female was out for a jog, sudden felt palpitations. Tried vagal maneuvers herself, but it didn’t resolve. Continued jogging to the ED.

[bg_faq_start]

Answer

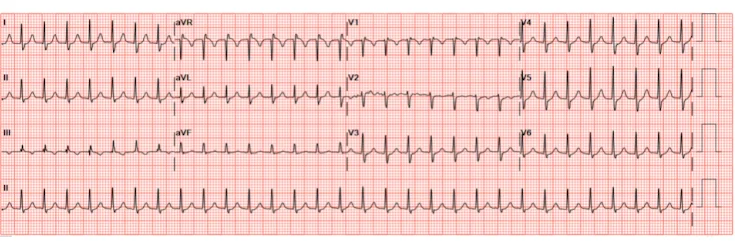

Interpretation: Supraventricular tachycardia – differential diagnosis includes AVNRT or AVRT
Key Features: Narrow complex, regular tachycardia – HR 180bpm
What is your next step: Try a vagal maneuver (carotid sinus massage or Valsalva maneuver) if vagal maneuver does not work, try adenosine (6 or 12 mg IV push).

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 3

87-year-old female. Here in ED with a dry cough, worried about COVID-19. Also, ran out of her warfarin recently.

[bg_faq_start]

Answer

Interpretation: Atrial fibrillation
Key Features: Irregularly irregular rhythm with no P waves
What is your next step: Determine time of onset. Choose between rate control or cardioversion (electrical or chemical). Stroke Prevention: use CCS CHADS65 to determine what antithrombotic to prescribe.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 4

55-year-old male. Palpitations and lightheadedness.

[bg_faq_start]

Answer

Interpretation: Atrial Flutter with 2:1 conduction
Key features: Narrow complex, regular tachycardia. F waves (flutter waves).
What is your next step: If unstable, cardioversion. If unsure if this is AFlutter or SVT, may trial a dose of adenosine, which will show underlying sawtooth pattern. Otherwise, treat similarly to atrial fibrillation. Chose between rate control or cardioversion (electrical or chemical) – CCS algorithm
Stroke Prevention: Use CCS CHADS65 to determine what antithrombotic to prescribe.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 4b

Same 55-year-old male from last ECG. Recently prescribed metoprolol for his “heart condition” and now feels light headed when rising quickly.

[bg_faq_start]

Answer

Interpretation: Atrial Flutter with 4:1 conduction
Key features: Narrow complex, regular tachycardia. F waves (flutter waves).
What is your next step: If unstable, cardioversion. If unsure if this is AFlutter or SVT, may trial a dose of adenosine, which will show underlying sawtooth pattern. Otherwise, treat similarly to atrial fibrillation. Chose between rate control or cardioversion (electrical or chemical) – CCS algorithm
Stroke Prevention: Use CCS CHADS65 to determine what antithrombotic to prescribe.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 5

72-year-old male with extensive cardiac history. He has been feeling weird palpitations in his chest and wants it checked out.

[bg_faq_start]

Answer

Interpretation: Pre-excited atrial fibrillation
Key Features: “wacky tacky” irregularly irregular rhythm. QRS width varies between narrow and wide.
What is your next step: Unstable – cardiovert. If stable – procainamide. Perform ECG when in sinus rhythm to confirm the patient has pre-excitation (delta waves). Consult cardiology.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 6

65-year-old male with history of psychiatric disorder was recently prescribed levofloxacin for his bacterial pneumonia. He now presents feeling worse.

[bg_faq_start]

Answer

Interpretation: Torsades de pointes
Key Features: Polymorphic ventricular tachycardia secondary to long QT.
What is your next step: Unstable – cardiovert. If stable – give Magnesium Sulphate, correct electrolyte abnormalities, stop all QT-prolonging medications, consider overdrive pacing. Consult cardiology.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 7

45-year-old male. Unconscious. BP 75/45. COVID-19 positive.

[bg_faq_start]

Answer

Interpretation: Ventricular tachycardia

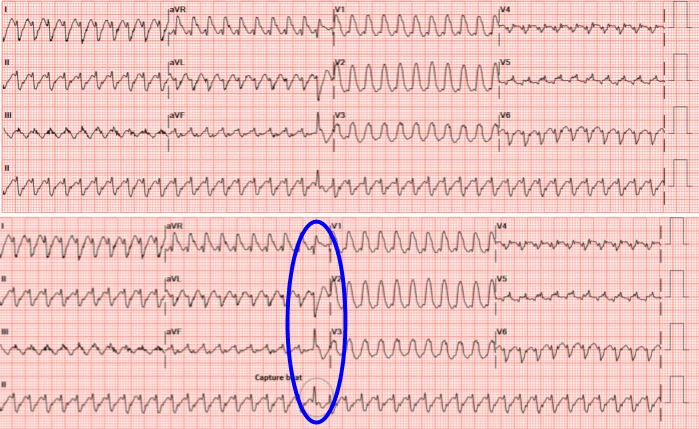

Key Features: Wide complex, regular tachycardia. The presence of a capture beat confirms that this is ventricular tachycardia.
What is your next step: If there is a pulse – synchronized cardioversion. If no pulse – start CPR, defibrillate, and follow ACLS algorithm. Consult cardiology.

[bg_faq_end][bg_faq_end]

Recommended Reading, Videos, and Podcasts

2. ECG – Bradyarrhythmias

This review is all about differentiating really slow rhythms. Remember, SOME asymptomatic bradycardias can be managed as an outpatient.

ACLS Algorithm for SYMPTOMATIC bradycardia.

ECG Cases Questions – What is the ECG and your next step?

[bg_faq_start]

Case 1

75-year-old from retirement home. Had syncopal event today. Has been feeling lightheaded for 2 weeks, but didn’t want to cause a big scene because of all the COVID-19 stuff.

[bg_faq_start]

Answers

Interpretation: Second degree AV block (2:1 block). HR 30 bpm.
Key Features: Every other P wave is not conducted.
What is your next step: Consider isoproterenol infusion. External pacing if unstable. Consult Cardiology.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 2

63-year-old male. Has been feeling really dizzy.

[bg_faq_start]

Answers

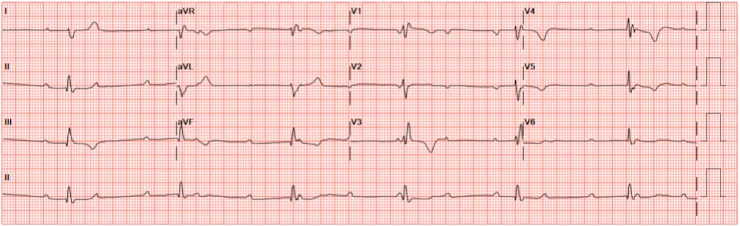

Interpretation: Complete heart block.
Key Features: AV dissociation (P-waves separate from the QRS complexes). Wide complex escape rhythm with right bundle branch block morphology.
What is your next step: Consider isoproterenol infusion. External pacing if unstable. Consult Cardiology. Placement of a transcutaneous transvenous pacemaker may be warranted.

[bg_faq_end][bg_faq_end]

Recommended Reading, Videos, and Podcasts

3. ECG – ST Abnormalities

This review is all about spotting ST- and T-wave changes.

ECG Cases Questions – What is the ECG and your next step?

[bg_faq_start]

Case 1

47 year-old male with left sided retrosternal chest pain, which resolves a bit with nitro spray.

[bg_faq_start]

Answer

Interpretation: High-risk NSTEMI (consider left main stenosis or triple vessel disease)
Key Features: Diffuse ST Depression with AVR elevation
What is your next step: Acute coronary syndrome treatment (ASA< Plavix, anticoagulation), consider nitroglycerin and beta-blocker. Consult cardiology/internal medicine.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 2

39-year-old male. Has had this before, was on Colchicine last time.

[bg_faq_start]

Answer

Interpretation: Pericarditis, a STEMI mimic
Key Features: Diffuse ST elevation. Diffuse PR depression.
What is your next step: High dose NSAIDs or ASA are first line. Colchicine x 3 months may also be warranted to prevent complications. Consider adding a proton pump inhibitor (PPI) to prevent gastrointestinal bleeding with high dose NSAIDs. Outpatient Cardiology consult for follow-up and echocardiogram to assess for pericardial effusion.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 3

75-year-old male. Was cutting his lawn by herself this morning. Felt some heaviness in hisPart chest that has not been relieved by his wife’s nitro spray.

[bg_faq_start]

Answer

Interpretation: Inferolateral STEMI
Key Features: ST elevation in the inferior and lateral leads with reciprocal ST depressions in I and AVL.
What is your next step: Consult interventional cardiologist. Consider primary PCI or thrombolysis. If thrombolysis is chosen, consult local protocol and determine if patient has any contraindications to thrombolysis.

[bg_faq_end][bg_faq_end][bg_faq_start]

Case 4

56-year-old female. Has been having indigestion all morning. Which is odd because she didn’t have anything abnormal.

[bg_faq_start]

Answer

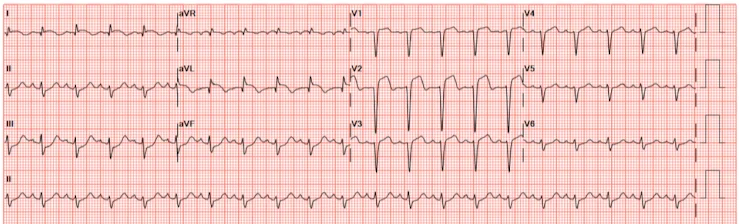

Interpretation: Anterolateral STEMI
Key Features: ST elevation in V1-V3, I, and AVL. Reciprocal ST depression in the inferior leads. Poor R wave profession. Sinus tachycardia. Left axis deviation.
What is your next step: Consult interventional cardiologist. Consider primary PCI or thrombolysis. If thrombolysis is chosen, consult local protocol and determine if patient has any contraindications to thrombolysis.

[bg_faq_end][bg_faq_end]
